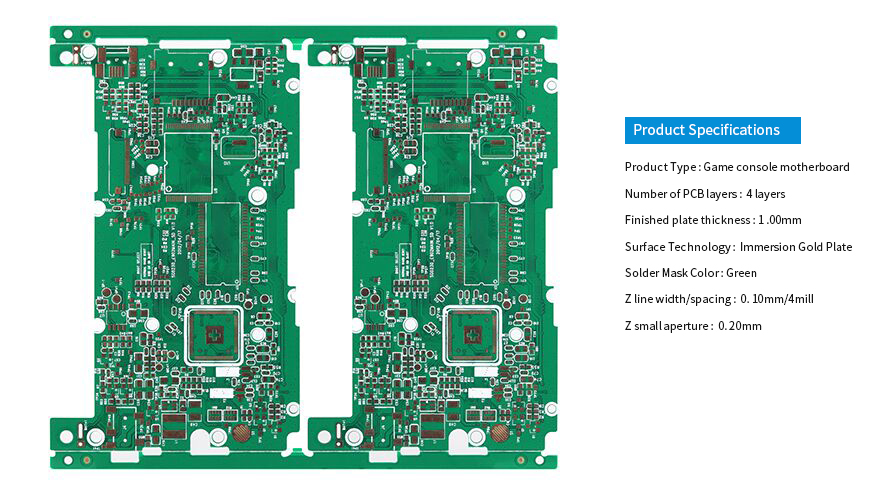

Game console motherboard , game console circuit board / circuit board

Product Specifications/specifications

Product Type: Game console motherboard

Number of PCB layers: 4 layers

Finished plate thickness: 1.00mm

Surface Technology: Immersion Gold Plate

Solder Mask Color: Green

Z line width/spacing: 0. 10mm/4milI

Z small aperture: 0.20mm

According to the number of layers of the circuit board, it can be divided into single-sided, double-sided , four -layer , six-layer and other multi-layer circuit boards .

Since the printed circuit board is not a general end product, the definition of the name is slightly confusing. For example, the motherboard for personal computers is called the motherboard, but not directly called the circuit board. Although there are circuit boards in the motherboard, but They are not the same, so the two are related but cannot be said to be the same when assessing the industry. Another example: because there are integrated circuit parts loaded on the circuit board, the news media calls it an IC board, but in fact it is not the same as a printed circuit board. When we usually speak of a printed circuit board, we mean a bare board - that is, a circuit board with no components on it.
